1、 Product Overview:
Model: HB-X900 Brand: Guard Leopard

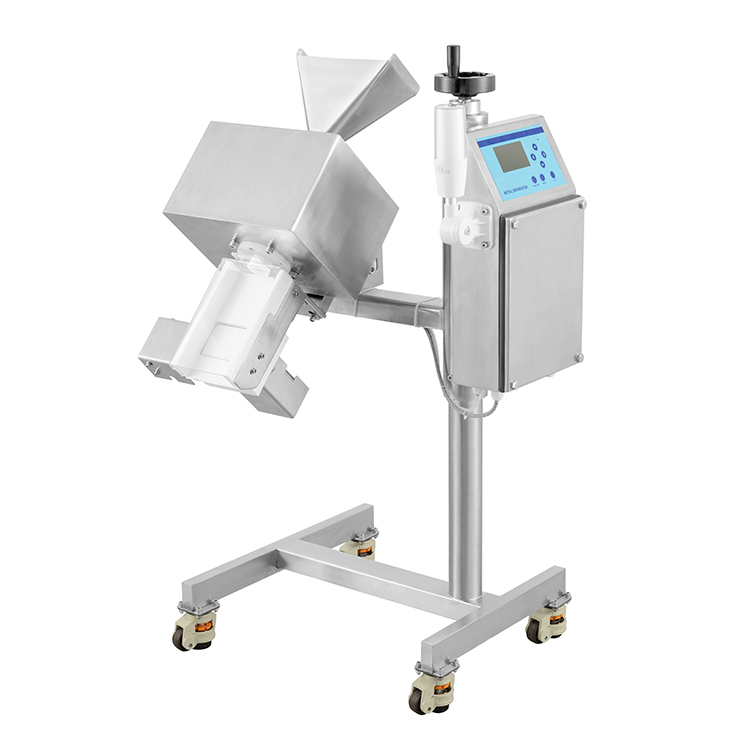

1、 The X900 model is an upgraded X800 pharmaceutical metal detector specifically designed for the pharmaceutical and health product industries with high detection accuracy requirements. It is made using German technology, with high sensitivity, stable and reliable performance, and can quickly remove products containing metal foreign objects.
2、 Applicable scope:
Suitable for the detection of pills, tablets, capsules, granules, and fine powder metal impurities.
3、 Product features:
1. With its unique accuracy, it can detect small metal objects inside the drug, and the processing speed can reach around 15000 particles per minute;
2. It can handle various types of drugs, and in order to save space, a more compact rack design has been adopted;

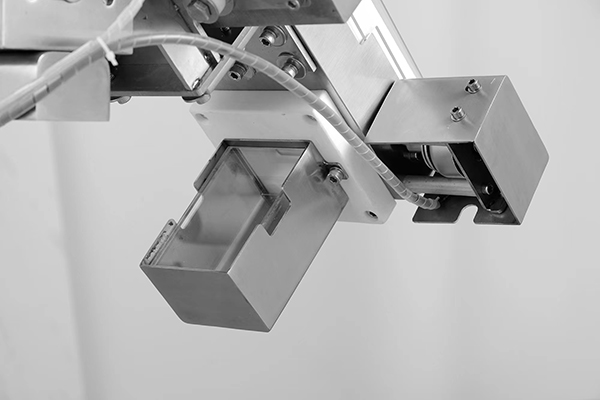

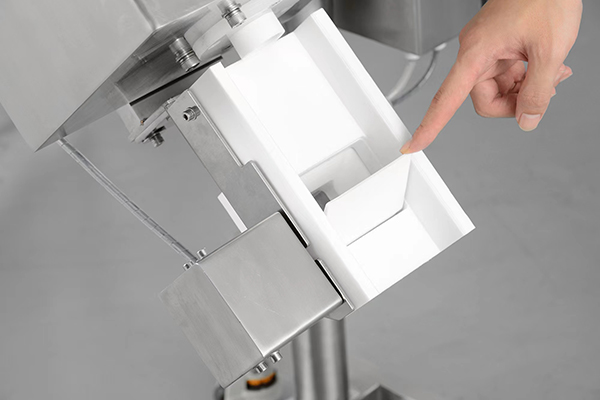

3. The selection part of the automatic removal device uses food grade PVC material;
4. The detection sensitivity is higher than industry standards, and can detect iron balls with a diameter greater than 0.3mm;
5. Sensitivity can be adjusted according to product characteristics, and the number of detection and elimination times can be recorded in real time, and records can be manually cleared;
6. Made of all stainless steel, anti vibration, strong adaptability to environmental and temperature changes, easy to clean;
7. Modular component replacement, convenient and fast maintenance;
8. Multiple language function options (Chinese, English, etc., other languages can be customized according to needs);
9. The pictures are for reference only, and the actual equipment may have similarities and differences with the pictures.
4、 Technical specifications and parameters:
| operating mode |
4.5 inch touch screen |
| Angle Adjustable |
30˚ ~ 40˚ |
| feed opening |
150mm * 100mm |
| Detection channel |
Inner diameter 35-50mm or other customized |
| Adjustable height of feed inlet |
800-950mm |
| Adjustable height of discharge port |
350-500mm |
| Processing capacity |
Approximately every minute10000-15000 颗粒（片） |
