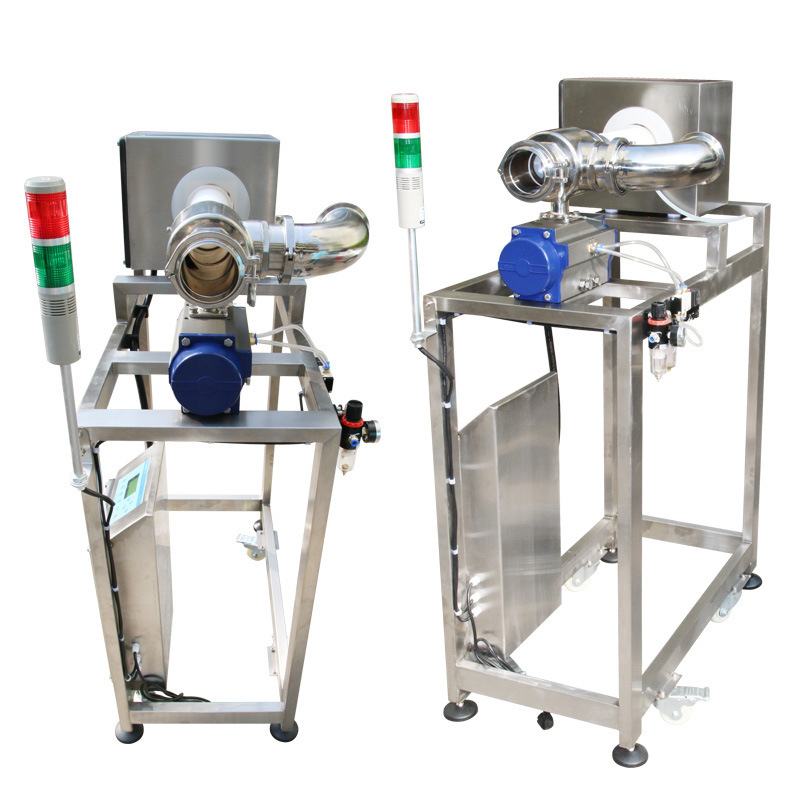

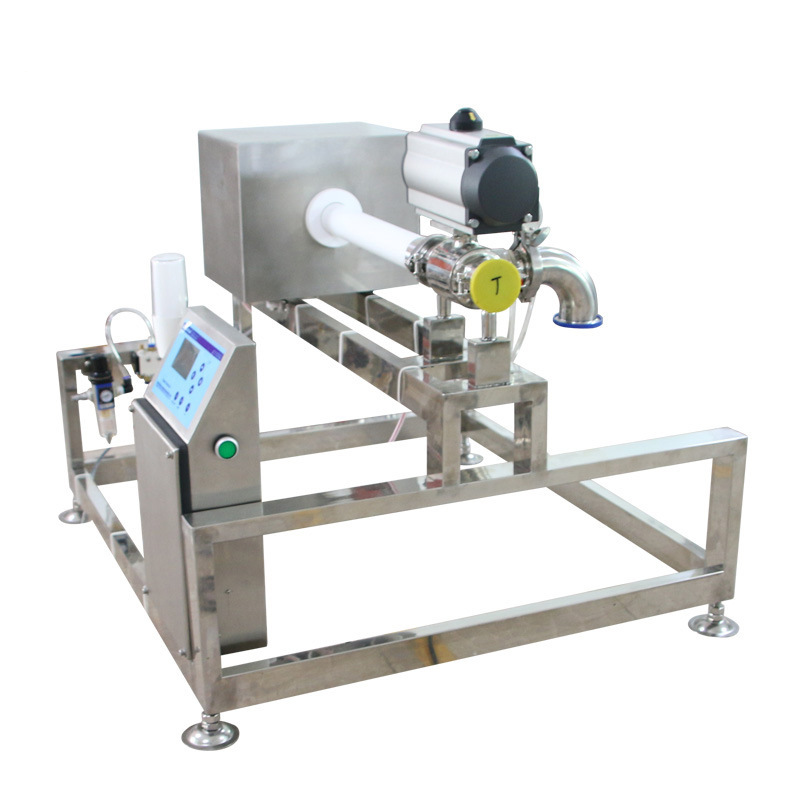

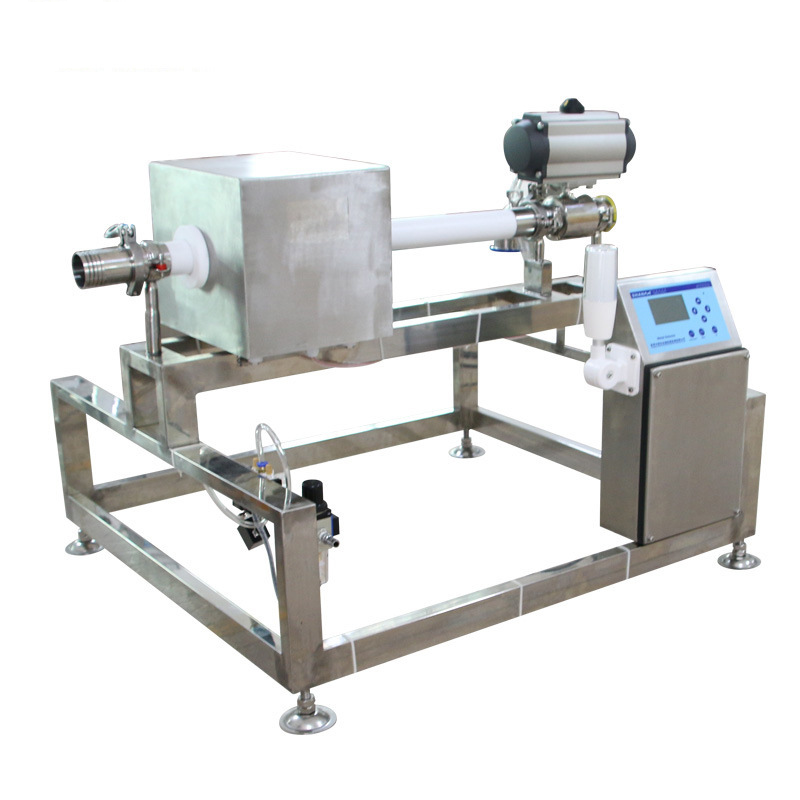

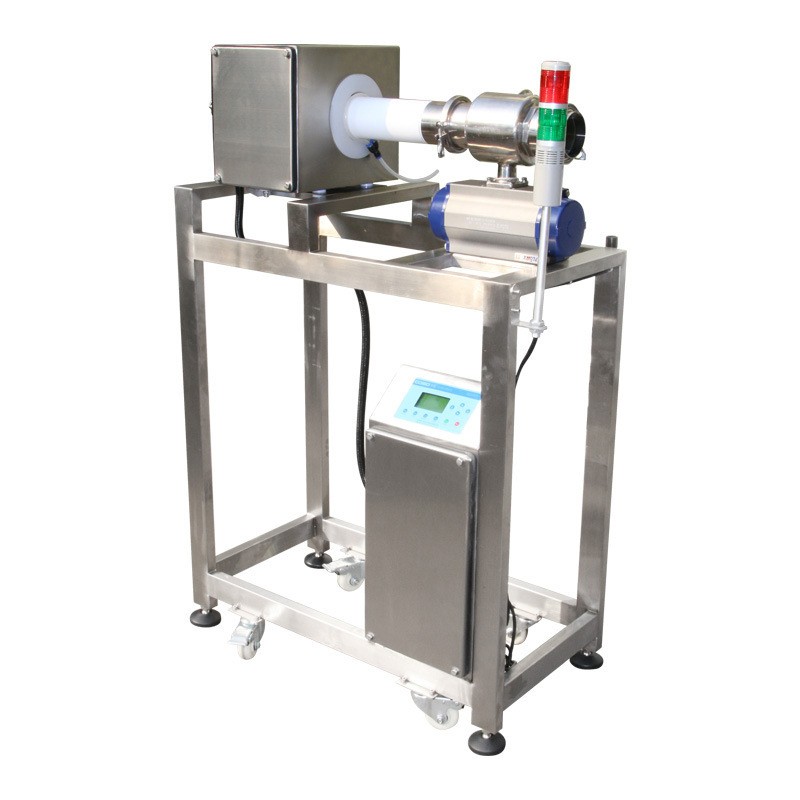

Sauce metal detection machine
1. The core part is carefully developed using advanced digital technology and original imported chips. The detection coil is formed in one go through encapsulation, with high detection accuracy, stable performance, and strong resistance to external interference
2 It can be made with multiple frequencies according to the characteristics of the product, and has the function of storing product testing data. It can store about 100 types of product testing data, with a wide range of applications;
3 High end 4.3 touch screen control, which can quickly and conveniently set parameters through a simple keying interface; It can detect multiple products that contain different product signals (characteristics), and can ensure extremely high detection accuracy with just one setting, without the need to readjust or set the program;
4 Modular component replacement, convenient and fast maintenance;
5 Shockproof and waterproof design, dustproof and waterproof function, anti vibration and noise absorption, able to adapt to harsh working environments;
6 Unmatched detection accuracy and stability, with stable detection performance and the highest detection accuracy for various metal foreign objects;
7 The compact design facilitates access to the production line, allowing the metal detection machine to be placed in a narrow installation space, minimizing the length of the pipeline as much as possible
2、 Application:
The sauce pipeline metal detector is mainly used for the inspection of paste and liquid products, such as sauce/chocolate/sausage meat/seasoning sauce/soup, etc. The first pipeline type metal detector actually used on a production line in China
3、 Product Features：
1. The core part is carefully developed using advanced digital technology and original imported chips. The detection coil is formed in a one-time manner through encapsulation, with high detection accuracy, stable performance, and strong resistance to external interference.
2 It can be made with multiple frequencies according to the characteristics of the product, and has the function of storing product testing data. It can store about 100 types of product testing data and has a wide range of applications.
3 Adopting intelligent recognition technology with self-learning and memory functions, it can automatically recognize and remember product characteristics, effectively eliminating interference caused by various "product effects".
4. Simple and friendly operation interface, using a dialogue LCD display screen, which can quickly and conveniently set parameters through a simple keying interface; It can detect multiple products that contain different product signals (characteristics), and can ensure extremely high detection accuracy with just one setting, without the need to readjust or set the program.
5 Modular component replacement, convenient and fast maintenance.
6 Meet the requirements of HACCP, GMP, and FDA.
7 Shockproof and waterproof design, dustproof and waterproof functions comply with IP-66/IP-65 international certification, resistant to vibration and absorbing noise, and can adapt to harsh working environments.
8. Unmatched detection accuracy and stability, with stable detection performance and the highest detection accuracy for various metal foreign objects. 9. Compact design facilitates access to the production line, allowing the metal detection machine to be placed in a narrow installation space, minimizing the length of the pipeline as much as possible.
4、 Technical specifications and parameters：
| Pipe diameter (mm) |
50~150mm |
| Detection accuracy Fe (mm) |
≥Φ 0.5mm |
| Detection accuracy SUS (mm) |
≥Φ 1.0mm |
| Detection capacity (t/h) |
3 ~10 t/h |
| Alarm method |
Automatic shutdown or valve exclusion optional |
| Exclusion method |
Pneumatic exclusion |
